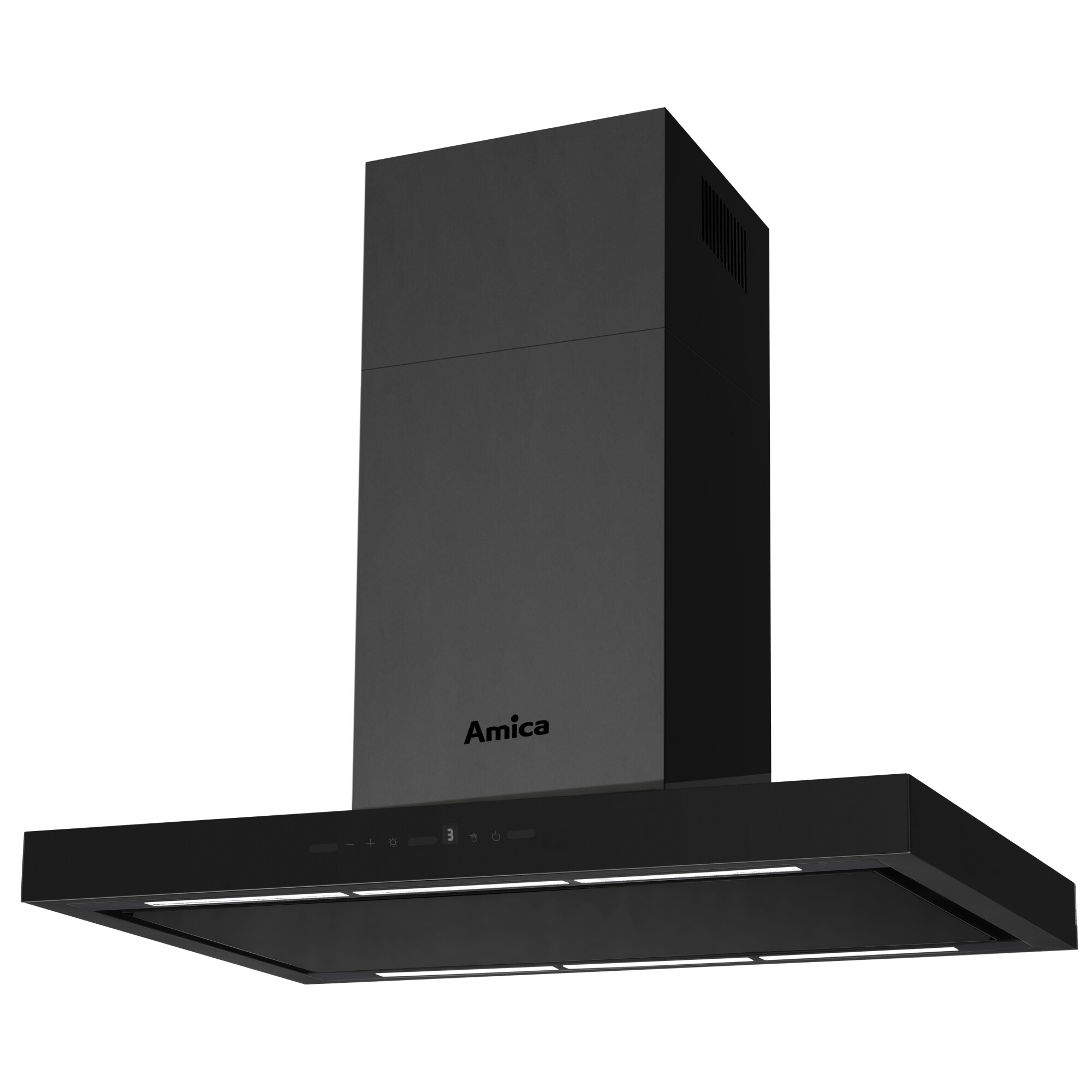

AHI9620A+

• Carbon filter(s) included:
  Yes
• Gesture control:
  Yes
• Number of carbon filters:
  2

• Number of grease filters:
  2
• Number of layers in grease filter:
  5
• Number of speed:
  4

• Type of control:
  Sensor
• Type of display:
  LED
• Type of grease filters:
  Aluminium frame

• Carbon filter type:
  FWP 18

• Frequency:
  50
• Air flow at 1 speed - extractor by EN 61591:
  342 m3/h
• Air flow at 2 speed - extractor by EN 61591:
  430 m3/h

• Air flow at 3 speed - extractor by EN 61591:
  554 m3/h
• Air flow at 4 speed - extractor by EN 61591:
  644 m3/h
• Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded]:
  644 m3/h

• Air Flow at Minimum Speed in Normal Use:
  342 m3/h
• Air Flow Rate at Best Efficiency Point - Q BEP:
  357 m3/h
• Air Pressure at Best Efficiency Point P BEP:
  415 Pa

• Annual energy consumption:
  30.5 kWh
• Annual energy consumption:
  30.5 kWh
• Average Illumination of the Lighting System on the Cooking Surface - E middle:
  357.3 lux

• Container qty 40'HQ:
  175
• Control panel on one side/two sides:
  One side
• Dimensions of grease filter:
  303.6*323.8

• Display color:
  white
• Distance to electric hob:
  450 mm
• Distance to gas hob:
  650 mm

• Electric Power Input at Best Efficiency Point - W BEP:
  107.6 W
• Energy Efficiency Index - EEI hood:
  38.6
• Fluid Dynamic Efficiency - FDE hood:
  38.2

• Fluid Dynamic Efficiency Class:
  A
• Grease Filtering Efficiency - GFE hood:
  55.7 %
• Grease Filtering Efficiency Class:
  E

• Gross volume:
  0.3589 m³
• Intensive or Boost Setting Auto-Off time:
  5 '
• Internal/external motor:
  Internal

• Main lighting colour temperature [K]:
  6500
• Lighting Efficiency - LE hood:
  35.7 lux/W
• Lighting Efficiency Class:
  A

• Lighting Efficiency Class:
  A
• Maximum Possible Air Flow:
  644 m3/h
• Motor unit rated power:
  110 W

• Motor type/model:
  G
• Net depth:
  610 mm
• Net height max:
  1050 mm

• Net height min:
  695 mm
• Net weight:
  30.18 kg
• Net width:
  898 mm

• Noise level at 1 speed - extractor by EN 60704-2-13:
  45 dB
• Noise level at 2 speed - extractor by EN 60704-2-13:
  58 dB
• Noise level at 3 speed - extractor by EN 60704-2-13:
  63 dB

• Noise level at 4 speed - extractor by EN 60704-2-13:
  66 dB
• Nominal Power of the Lighting System - W L:
  10 W
• Number of motor units:
  1

• Number units of main lighting:
  2
• Air exhaust diameter:
  150 mm
• Type of plug or cable:
  Euro plug

• Power Consumption in Standby Mode - Ps:
  0.41 W
• Power Consumption in Off Mode - Po:
  0.37 W
• Power cabel length:
  120 cm

• Power rating:
  122 W
• Power Supply Voltage:
  230V
• Power unit of main lighting :
  6 W

• Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded]:
  66 dB
• Sound Power Emission at Minimum Speed Available in Normal Use:
  45 dB
• Noise level:
  66 dB

• Time Increase Factor - f:
  0.6
• Type of main lighting:
  LED strip
• Type of main lighting:
  LED strip
