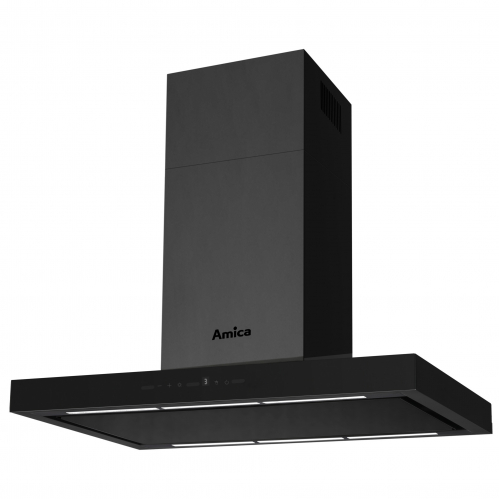

AHI9620A+
AHI9620A+
Specification
FEATURES
| Air flaps Yes | Delay Yes | Maximum time of delay 15 ' |
| Panel - language version Pictograms | Protection class of electric shock I_Class | Low noise level No |
| Type of work Extraction/Recirculation |
Equipment
| Carbon filter(s) included Yes | Gesture control Yes | Number of carbon filters 2 |
| Number of grease filters 2 | Number of layers in grease filter 5 | Number of speed 4 |
| Type of control Sensor | Type of display LED | Type of grease filters Aluminium frame |
| Carbon filter type FWP 18 |
Technical data
| Frequency 50 | Air flow at 1 speed - extractor by EN 61591 342 m3/h | Air flow at 2 speed - extractor by EN 61591 430 m3/h | ||||||||||||||||||||||||||||||||||||
| Air flow at 3 speed - extractor by EN 61591 554 m3/h | Air flow at 4 speed - extractor by EN 61591 644 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 644 m3/h | ||||||||||||||||||||||||||||||||||||
| Air Flow at Minimum Speed in Normal Use 342 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 357 m3/h | Air Pressure at Best Efficiency Point P BEP 415 Pa | ||||||||||||||||||||||||||||||||||||
| Annual energy consumption 30.5 kWh | Annual energy consumption 30.5 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 357.3 lux | ||||||||||||||||||||||||||||||||||||
| Container qty 40'HQ 175 | Control panel on one side/two sides One side | Dimensions of grease filter 303.6*323.8 | ||||||||||||||||||||||||||||||||||||
| Display color White | Distance to electric hob 450 mm | Distance to gas hob 650 mm | ||||||||||||||||||||||||||||||||||||
| Electric Power Input at Best Efficiency Point - W BEP 107.6 W | Energy Efficiency Index - EEI hood 38.6 | Fluid Dynamic Efficiency - FDE hood 38.2 | ||||||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency Class A | Grease Filtering Efficiency - GFE hood 55.7 % | Grease Filtering Efficiency Class E | Gross volume 0.3589 m³ | Intensive or Boost Setting Auto-Off time 5 ' | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 35.7 lux/W | Lighting Efficiency Class A | Lighting Efficiency Class A | Maximum Possible Air Flow 644 m3/h | Motor unit rated power 110 W | Motor type/model G | Net depth 610 mm | Net height max 1050 mm | Net height min 695 mm | Net weight 30.18 kg | Net width 898 mm | Noise level at 1 speed - extractor by EN 60704-2-13 45 dB | Noise level at 2 speed - extractor by EN 60704-2-13 58 dB | Noise level at 3 speed - extractor by EN 60704-2-13 63 dB | Noise level at 4 speed - extractor by EN 60704-2-13 66 dB | Nominal Power of the Lighting System - W L 10 W | Number of motor units 1 | Number units of main lighting 2 | Air exhaust diameter 150 mm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.41 W | Power Consumption in Off Mode - Po 0.37 W | Power cabel length 120 cm | Power rating 122 W | Power Supply Voltage 230V | Power unit of main lighting 6 W | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 66 dB | Sound Power Emission at Minimum Speed Available in Normal Use 45 dB | Noise level 66 dB | Time Increase Factor - f 0.6 | Type of main lighting LED strip | Type of main lighting LED strip |
