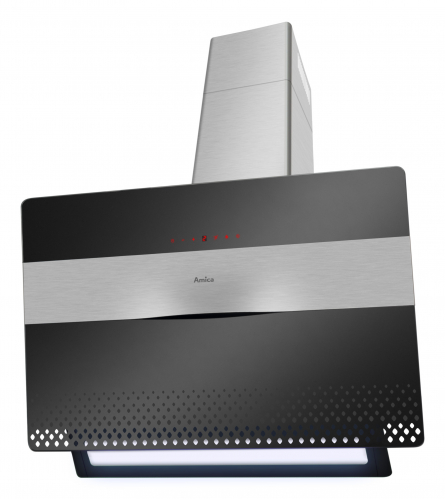

OKP9654IS
OKP9654IS
Specification
FEATURES
| Accessories Pipe | Air flaps Yes | Delay Yes |
| FrameOn Yes | High efficiency Yes | Maximum time of delay 15 ' |
| Montage template Yes | Panel - language version Pictograms | Protection class of electric shock I_Class |
| Low noise level No | SmellFree - Ozone generator Yes | Type of work Extraction/Recirculation |
Equipment
| Number of carbon filters 2 | Number of grease filters 2 | Number of layers in grease filter 5 |
| Number of speed 4 | PowerBooster Yes | Type of control Sensor |
| Type of display LCD | Type of grease filters Aluminium frame | Carbon filter type FWP 18 |
Technical data
| Air flow at 1 speed - extractor by EN 61591 399 m3/h | Air flow at 2 speed - extractor by EN 61591 480 m3/h | Air flow at 3 speed - extractor by EN 61591 611 m3/h | |||||||||||||||||||||||||||||||||||||||
| Air flow at 4 speed - extractor by EN 61591 711 m3/h | Air Flow at Intensive or Boost Setting [If Available] 711 m3/h | Air Flow at Maximum Speed in Normal Use [Intensive or Boost Excluded] 611 m3/h | |||||||||||||||||||||||||||||||||||||||
| Air Flow at Minimum Speed in Normal Use 399 m3/h | Air Flow Rate at Best Efficiency Point - Q BEP 403.8 m3/h | Air Pressure at Best Efficiency Point P BEP 425.9 Pa | |||||||||||||||||||||||||||||||||||||||
| Annual energy consumption 47 kWh | Annual energy consumption 47 kWh | Average Illumination of the Lighting System on the Cooking Surface - E middle 159.2 lux | |||||||||||||||||||||||||||||||||||||||
| Container qty 40'HQ 195 | Control panel on one side/two sides One side | Dimensions of grease filter 238.5 x 262 | |||||||||||||||||||||||||||||||||||||||
| Display color Red | Distance from light cover to wall 3.6 cm | Distance to electric hob 45 cm | |||||||||||||||||||||||||||||||||||||||
| Distance to gas hob 65 cm | Electric Power Input at Best Efficiency Point - W BEP 145.8 W | Energy Efficiency Index - EEI hood 47.6 | |||||||||||||||||||||||||||||||||||||||
| Fluid Dynamic Efficiency - FDE hood 32.8 | Fluid Dynamic Efficiency Class A | Grease Filtering Efficiency - GFE hood 65 % | Grease Filtering Efficiency Class E | Gross volume 0.3367 m³ | Intensive or Boost Setting Auto-Off time 5 ' | Internal/external motor Internal | Main lighting colour temperature [K] 6500 | Lighting Efficiency - LE hood 26.5 lux/W | Lighting Efficiency Class B | Lighting Efficiency Class B | Limitation of Exhaust Air - t limit 8 ' | Maximum Possible Air Flow 711 m3/h | Motor unit rated power 300 W | Motor type/model E | Net depth 49 cm | Net height max 142 cm | Net height min 94 cm | Net weight 25.3 kg | Net width 90 cm | Noise level at 1 speed - extractor by EN 60704-2-13 59 dB | Noise level at 2 speed - extractor by EN 60704-2-13 66 dB | Noise level at 3 speed - extractor by EN 60704-2-13 68 dB | Noise level at 4 speed - extractor by EN 60704-2-13 69 dB | Nominal Power of the Lighting System - W L 6 W | Number of motor units 1 | Number units of main lighting 1 | Air exhaust diameter 15 cm | Type of plug or cable Euro plug | Power Consumption in Standby Mode - Ps 0.55 W | Power Consumption in Off Mode - Po 0.48 W | Power cabel length 120 cm | Power rating 306 W | Power Supply Voltage 230V | Power unit of main lighting 6 W | Noise level on TURBO mode 69 dB | Sound Power Emission at Intensive or Boost Setting [if available] 69 dB | Sound Power Emission at Maximum Speed Available in Normal Use [Intensive or Boost Excluded] 68 dB | Sound Power Emission at Minimum Speed Available in Normal Use 59 dB | Noise level 68 dB | Time Increase Factor - f 0.9 | Type of main lighting LED panel |
